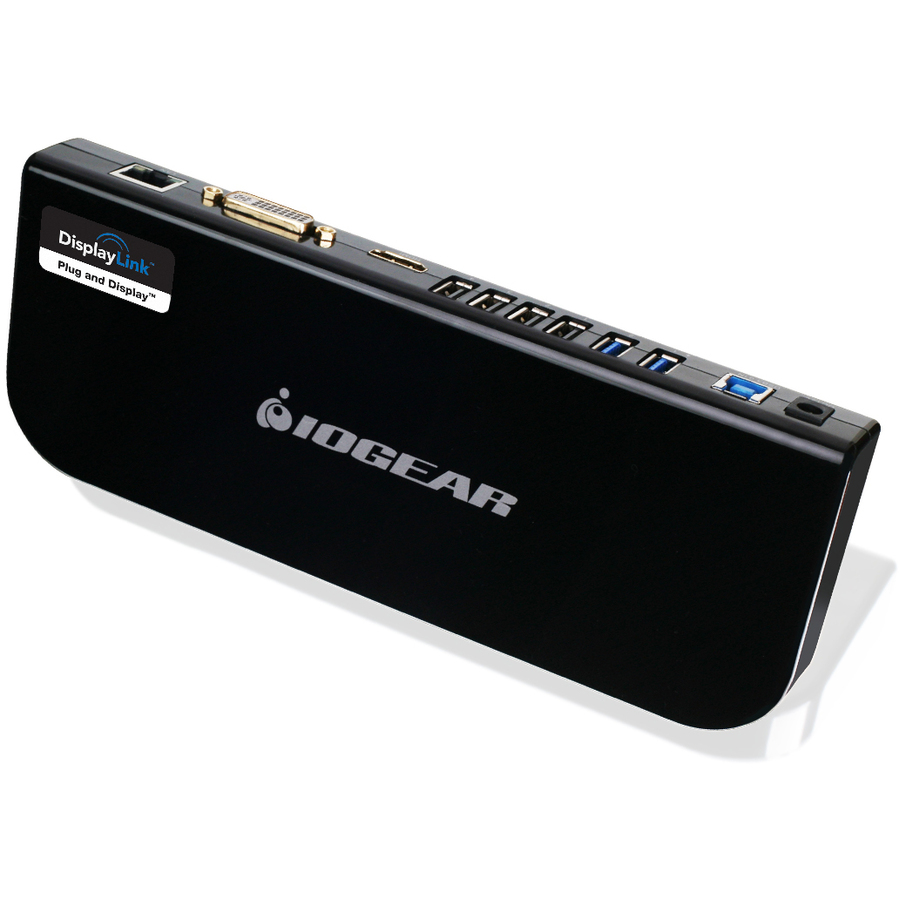

IOGEAR Complete workstation connectivity for your Ultrabook or Laptop

Manufacturer:IOGEAR, Inc
Manufacturer Part Number:GUD300
Manufacturer Website Address:http://www.iogear.com
Brand Name:IOGEAR
Product Model:GUD300
Product Name:USB 3.0 Universal Docking Station with Power Adapter
Marketing Information:

IOGEAR’S USB 3.0 Universal Docking Station quickly and easily turns your laptop, Ultrabook or Microsoft Surface® Pro tablet into a full-featured workstation. With support for dual monitors, gigabit Ethernet, 6 USB ports, plus microphone and speaker connections, the USB 3.0 Universal Docking Station connects you to all your peripherals with just a single USB 3.0 cable.

IOGEAR’s USB3.0 Docking Station delivers all the connectivity of a desktop with a simple USB 3.0 cable from your laptop, Ultrabook or Microsoft Surface® Pro tabletyou’ve added DVI and HDMI connections supporting two additional monitors, a gigabit Ethernet port, six USB ports (two USB 3.0 and four USB 2.0), and audio input/output jacks for headsets or speakers. Now you can easily add a keyboard and mouse, external hard drives, printers, webcams, etc. to turn that laptop into a complete workstation.

Packaged Quantity:1
Product Type:Docking Station

Connectivity Technology:Wired
Device Supported:Notebook/Desktop PC

Host Interface:USB 3.0
Audio Line In:Yes
Audio Line Out:Yes
Total Number of USB Ports:8
Number of USB 2.0 Ports:4
Number of USB 3.0 Ports:2
Network (RJ-45):Yes
Headphone:Yes
Microphone:Yes
HDMI:Yes
DVI:Yes

Height:1.40″ (35.56 mm)
Depth:3.40″ (86.36 mm)
Length:8.80″ (223.52 mm)
Weight (Approximate):272.2 g

Package Contents:

• USB 3.0 Universal Docking Station with Power Adapter
• 1 X USB 3.0 Super Speed Cable
• 1 X HDMI to DVI Adapter
• 1 X DVI to VGA Adapter
• 1 X Software Installation CD
• 1 X Quick Start Guide
• 1 X AC Adapter
• 1 X Warranty Card

Additional Information:

• Operating System Support : Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Mac OS X 10.6, 10.7, 10.8, 10.9, 10.10
• Resolution : HDMI: up to 2560×1440 (1 monitor connected via HDMI 1.4 cable), up to 2048×1152, 1920×1200 (2 monitors connected) / DVI: up to 2048×1152, 1920×1200 / VGA (using included adapter): up to 1920×1200
• LAN Connection : Gigabit 10/100/1000Mbps
• Power Adapter : Input: 100-240VAC @ 50/60Hz 2A Output: 12VDC @ 2A
• Connectors – USB : (2) USB 3.0 / (4) USB 2.0 / (2) USB charge ports @ 1.5A output
• Connectors – LAN : RJ-45 Ethernet connector
• Audio – Audio Output : Supports 6 channel audio (5.1 surround) over HDMI
• Console Connectors – Monitor : 1 HDMI output & 1 DVI output (includes DVI to VGA & HDMI to DVI adapters
• POP Information – 10” Peg Hook : 2
• POP Information – 6” Peg Hook : 1
• Unit Package Dimensions – Width : 9.3″ (23.5cm)
• Unit Package Dimensions – Height : 5.4″ (13.7cm)
• Unit Package Dimensions – Depth : 3.5″ (8.9cm)
• Master Carton – Width : 10″ (25.4cm)
• Master Carton – Height : 6.4″ (16.2cm)
• Master Carton – Depth : 11.5″ (29.2cm)
• Master Carton – Master Carton Qty. : 3
• Weight – Master Carton Wt. : 5.4lbs (2.4kg)
• Weight – Unit Pack Wt. : 1.6lbs (.70kg)

Compatibility:

• Apple MacBook Notebook

Microsoft Tablet PCs:

• Surface Pro
• Surface Pro 2

Country of Origin:China

Limited Warranty:3 Year
